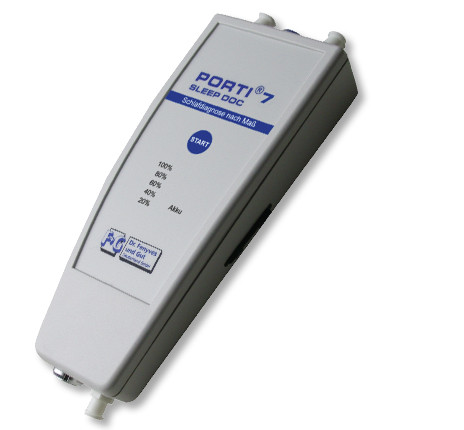

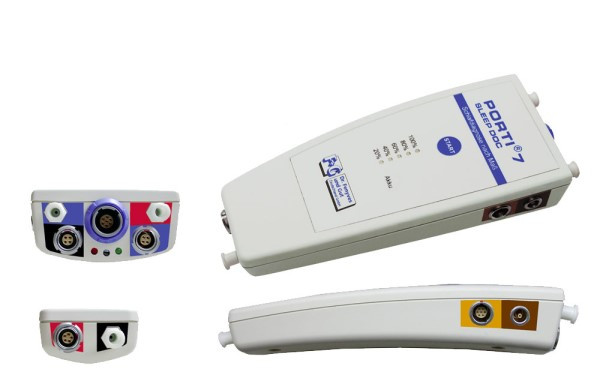

PORTI 7 ® Sleep Doc
|

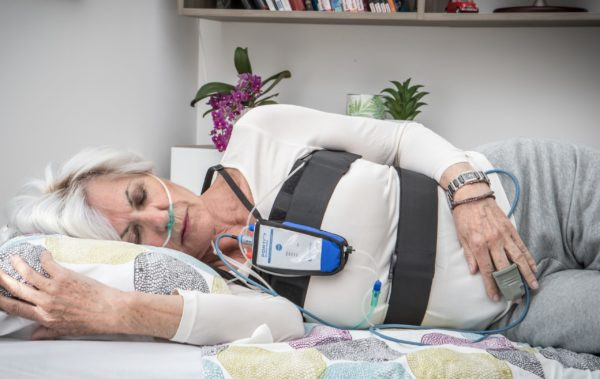

The Porti 7 sleep monitor offers 10 standard channels, with the option to extend the measurement capabilities up to 24 channels (see table below). Porti 7 is designed for the diagnosis of obstructive sleep apnea (OSA) and other sleep-related conditions and can be used both in hospital and at home by the patient. The device is easy to wear, simple to use and comes in a protective case. All devices in the Porti range utilize pneumatic belt technology with highly sensitive removable cushions, a feature that greatly reduces consumable costs and allows for belt cleaning. Running costs are also minimized as the Porti 7 includes an internal rechargeable battery, the nasal cannula is the only real consumable cost per trial. Study data is analyzed using the SleepDoc Porti software package, which provides customizable data display and report templates. |
 |
Porti family features:
- Low running costs due to inexpensive consumables
- Optional extended warranty through our regular service program
- Built-in rechargeable battery to ensure low running costs
- It is easy to use for both patients and clinical staff
- Angled chest and abdomen technology, utilizing precise robustness
- Pressure sensors, eliminating the need for expensive specialty belts
- The pressure sensors are detachable from the belts allowing them to be effectively cleaned (machine or hand washable)
- The internal battery fully charges in 2 hours - a fully charged battery will record for 16 hours
Software features:
The analysis and reporting software is extremely comprehensive, yet easy to understand. Its flexibility allows the user to determine the parameters, content and design of the reports. It means that the software can be customized to fit the needs of the sleep laboratory.
- All Sleep Doc Porti systems use the same software, consumables and sensors
- Quick assessment of reports and data
- Full assessment, diagnosis and report generation
- Manual editing options
- Easy configuration of raw data and final reports
- Flexible parameter control for the clinician
- Quick and easy report generator
- Network integration
- Option to send raw data by e-mail directly
- Data import and export via the internet
- Download directly via USB connection
- No memory card required, all patient data is stored in the internal memory
- Battery check on the front of the unit. LEDs show the remaining battery life
- It also uses an automatic programmed start in the Porti software
Specifications:
|
Channel |
Method |
|
Respiratory flow |
Using specialized nasal cannula or directly from the patient's CPAP interface |
|
SpO2, Pulse, Pulse Wave |
Integrated Pulse Oximeter Utilizing a Finger SpO2 Sensor |
|
Snoring |
The built-in microphone detects sound through the airflow collected through the special nasal cannula |
|
CPAP / BiPAP |
Absolute pressure is achieved using an integrated pressure sensor, which can be connected directly to the patient's CPAP interface or tubing |
|
Thorax |
Effort belt with detachable pressure sensors |
|
Abdomen |
Effort belt with detachable pressure sensors |
|
Ambient light |
The internal light sensor allows continuous monitoring of the brightness of the sleeping environment |
|
Body position |
Using an integrated magnetic sensor (5 positions) |
|
Optional channels |
Method |
|
Restless Leg |
Using a Piezo pressure sensor |
|
ECG |
Single-channel lead through adhesive electrodes. Resolution up to 200 Hz |
|
Pulse transit time (PTT) |
Calculated using Pulse and ECG channels |
|
Systolic blood pressure (RRsys) |
Continuous systolic blood pressure recording without additional sensors (PTT required) |
|
Thermistor |
An alternative flow measurement method. |
|
NeuroPort |
For automatic sleep staging |
|
8 external analog channels |
External box with voltage input for up to 8 external channels with galvanic isolation |
